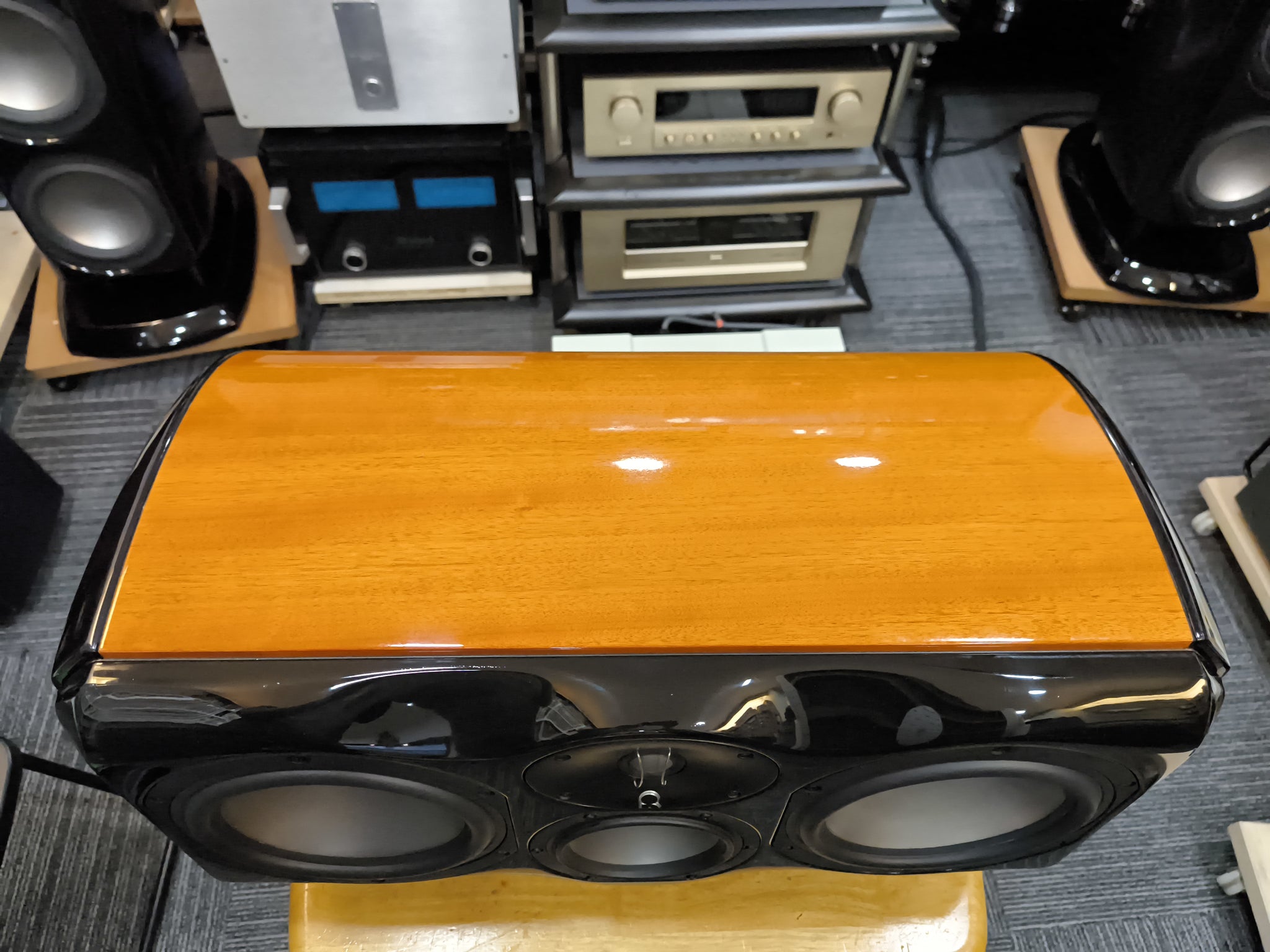

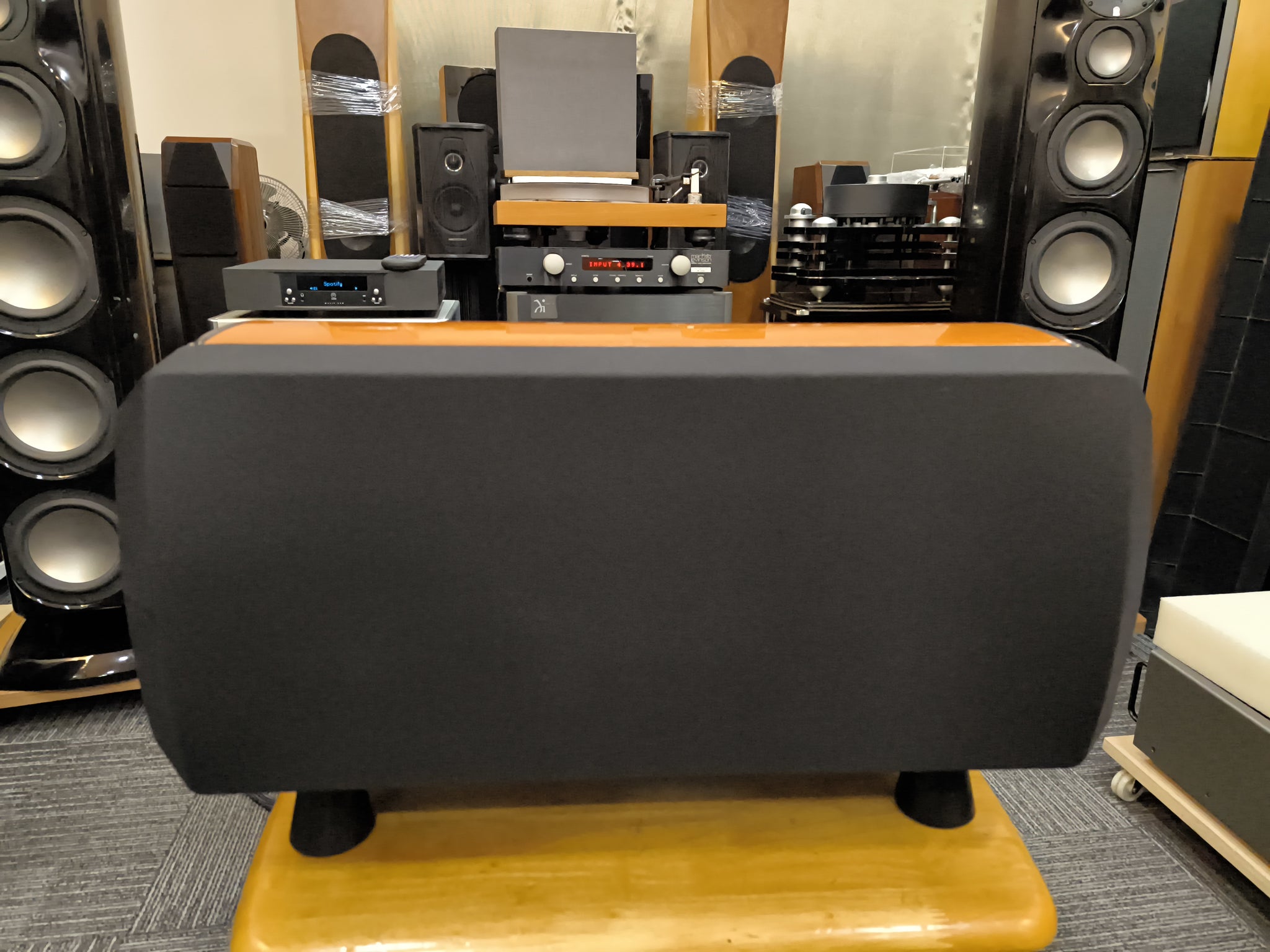

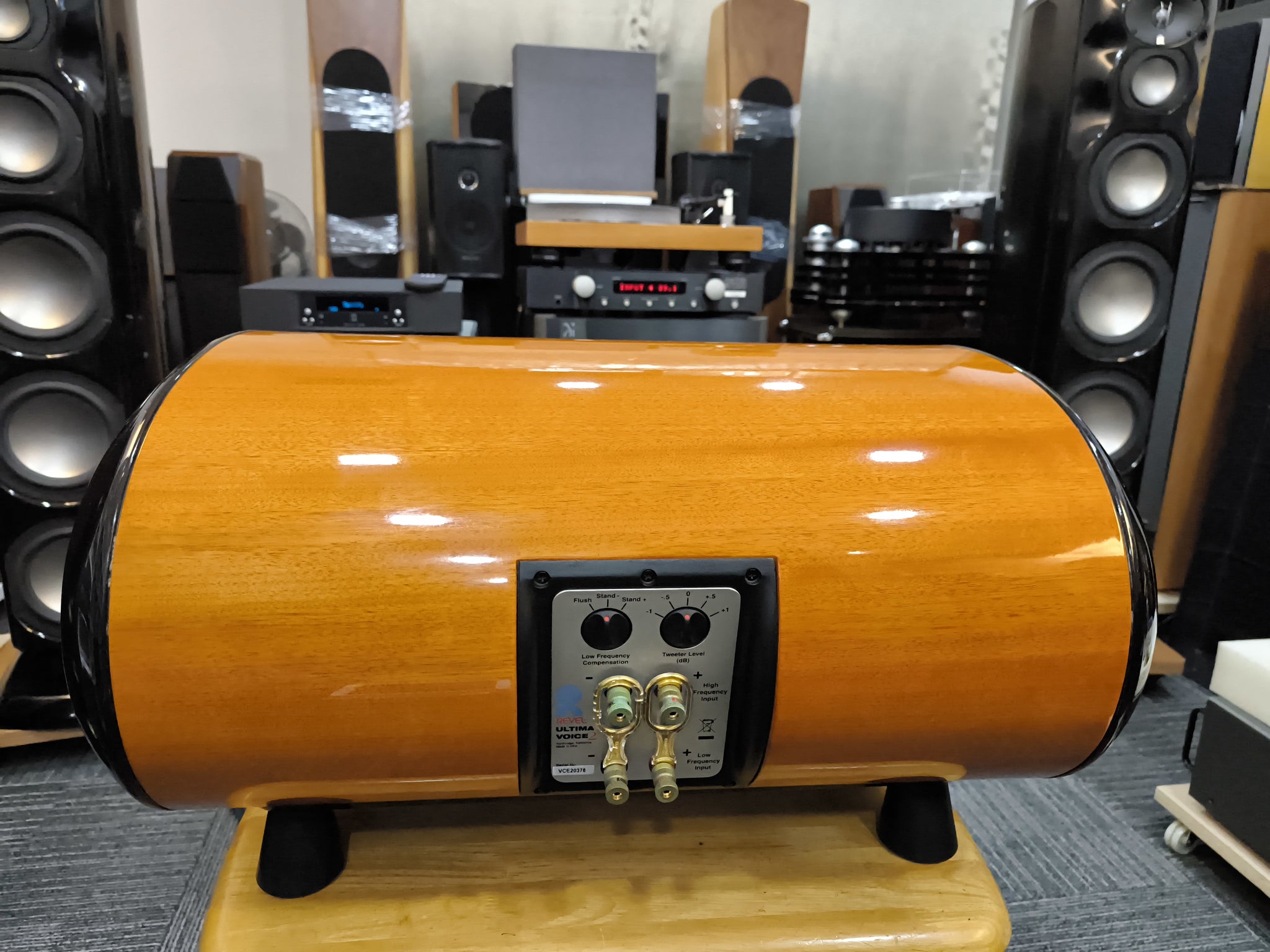

Revel Ultima Voice 2 Center Speakers

Regular price
$4,800.00
Sale price
$4,800.00
Regular price
Sold out
Unit price
per

Please contact us via email if you are interested:

HERE

3-Way Center Channel Loudspeaker.

Includes original table stand.

Voice2 Highlights

  • Rounded baffles and enclosures virtually eliminate diffraction
  • Woofer and midrange trandsducers feature inverted-dome designs for superior piston like behavior
  • Tweeters use acoustically optimized waveguides for seamless transitions between the tweeter and midrange
  • Pure-beryllium dome tweeters exhibit the optimal balance of high-power handling, low distortion and compression
  • Separate filter boards for each frequency range
  • Ideally suited for use as a LCR loudspeaker

General Specifications

Frequency Response 3 dB from 60 Hz to 45 kHz ±0.5 dB from 65 Hz to 18 kHz ±1.0 dB from 65 Hz to 20 kHz
Height 14.7" (37.3 cm)
Width 25.5" (64.8 cm)
Depth 14" (35.6 cm)
Weight 62 lb (28.2 kg) Shipping weight 74.5 lb (33.8 kg)
Crossover Frequencies Three-way, high-order acoustic response @ 235 Hz and 2 kHz
Finishes Mahogany finish
High-frequency Driver Components 1" (2.5 cm) beryllium tweeter
Nominal Impedance 6 ohms (nominal) 3.6 ohms (minimum @ 90 Hz)
Low Frequency Extension -10 dB at 36 Hz -6 dB at 49 Hz -3 dB at 60 Hz
Low-frequency Driver Components Two 8" (20 cm) titanium cone woofers
Mid-frequency Driver Components 5 ¼" (13.3 cm) titanium cone midrange
Sensitivity 89 dB SPL with 2.83 V @ 1m (4 pi anechoic)
