Include factory boxes , outboard power supply, DC cable and remote control.
Design and Construction

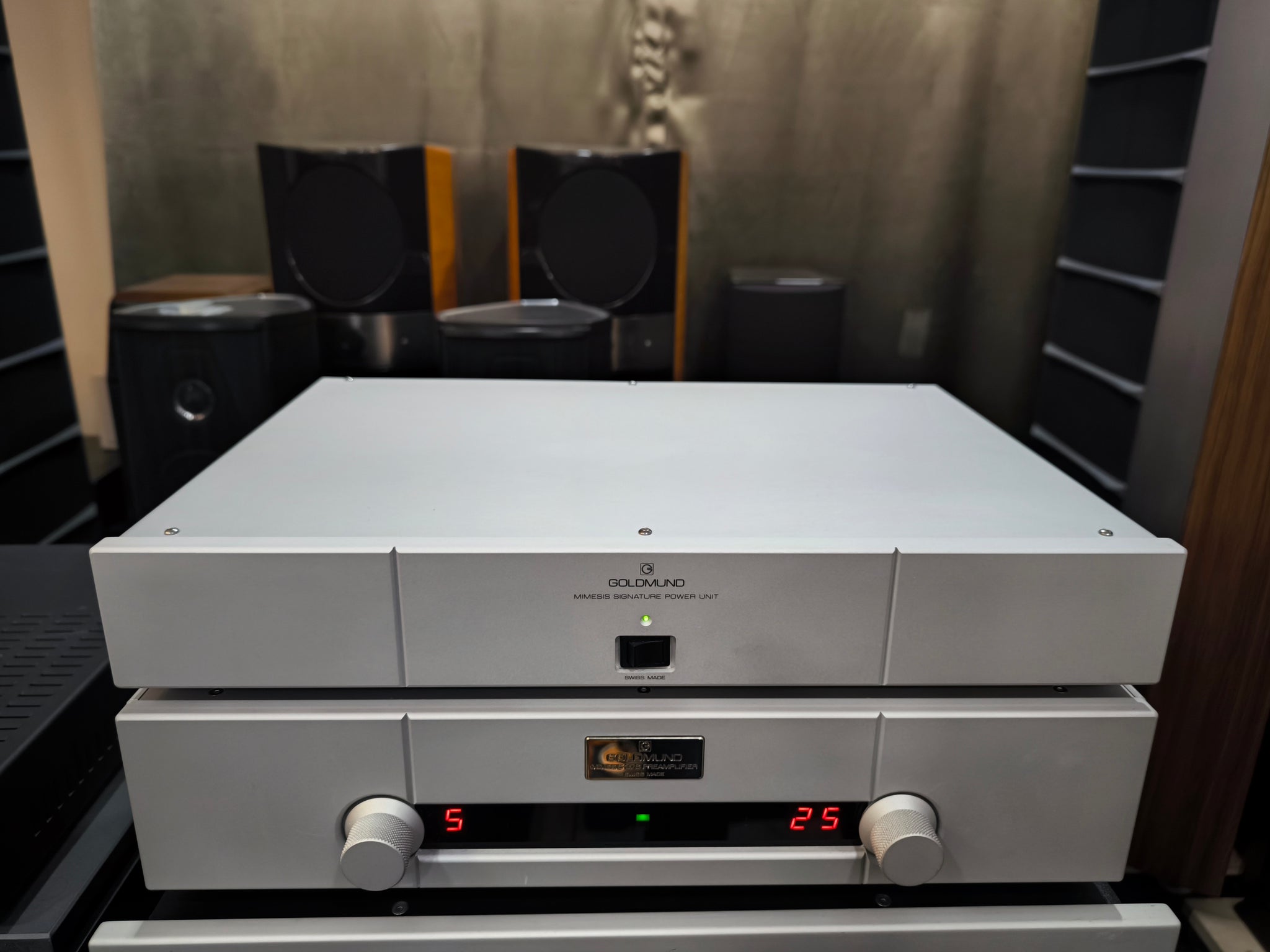

•Two-Box Configuration: Separates the sensitive audio circuitry into one chassis and a hefty, multi-circuit power supply into a second chassis to eliminate magnetic fields and vibrations.
• Dual-Mono Layout: Features a full dual-mono construction with processor-driven linked attenuators.
• Power Regulation: Uses 2 successive stages of power regulation split across 4 separate circuits, derived from Goldmund’s ultra-low-noise technology originally developed for the Mimesis 22S/22H series.
• Purist Approach: Omits onboard phono stages and headphone outputs to prevent signal degradation or noise interference. Connectivity and Features

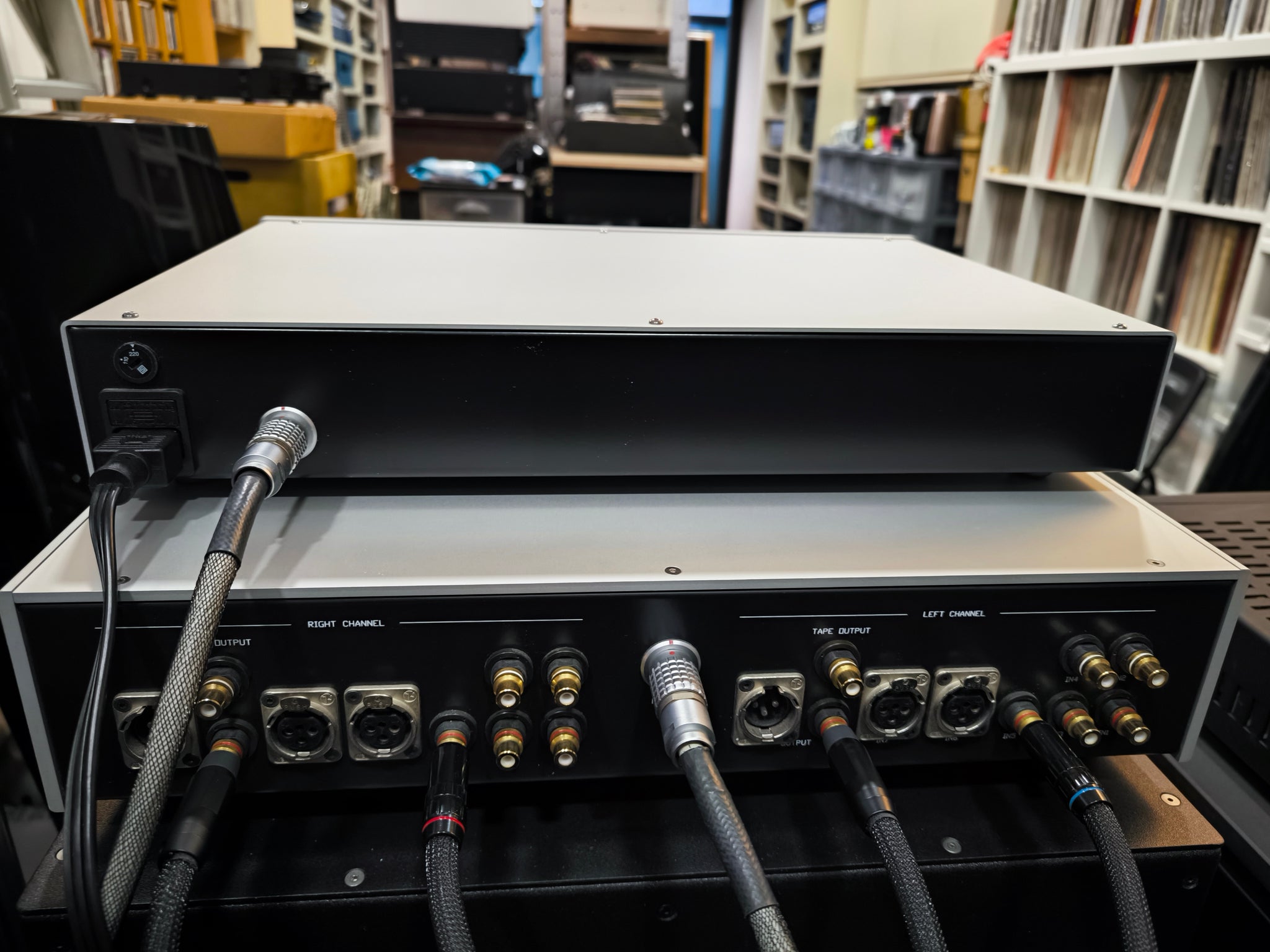

• Inputs: 7 total inputs, comprising 5 unbalanced (RCA) and 2 balanced (XLR) analog inputs.
• Outputs: 3 outputs per channel, including 1 unbalanced tape loop, 1 balanced (XLR) output, and 1 unbalanced (RCA) output.
• Protection Systems: Includes built-in ground loop protection and automatic muting triggered by AC line drops or interruptions.
Specifications • Input Impedance: 39 kOhms
• Output Impedance: 50 Ohms
• Maximum Input Level: 9.6 V RMS (balanced), 4.8 V RMS (unbalanced)
• Maximum Output Level: 19.2 V RMS (balanced), 9.6 V RMS (unbalanced)
• Crosstalk / Line Noise: >105 dB crosstalk, >120 dB line noise performance
